HIGH RISE RESIDENTIAL BUILDING
Community Development
Winter 2006
This project is a 30-Story residential building in the business district of Tbilisi. The district is under development
and has a growing potential to become a distinguished part of the city. The area is mostly mixed: business, governmental, residential, and recreation are all together.
and has a growing potential to become a distinguished part of the city. The area is mostly mixed: business, governmental, residential, and recreation are all together.
The building has an open and green public space connected to surroundings including two lobbies for each
tower, which are lit and ventilated naturally to correspond to zoning regulations. There are four types of the apartments that vary by the number of rooms. Most of the apartments have their own balcony with a view of the city. The structure is made of reinforced beamless concrete slabs with walls finished with terracotta tiles installed into a metal frame.
tower, which are lit and ventilated naturally to correspond to zoning regulations. There are four types of the apartments that vary by the number of rooms. Most of the apartments have their own balcony with a view of the city. The structure is made of reinforced beamless concrete slabs with walls finished with terracotta tiles installed into a metal frame.
All drawings are hand-drafted.
Site Plan
2 Bedroom Apartment Plan

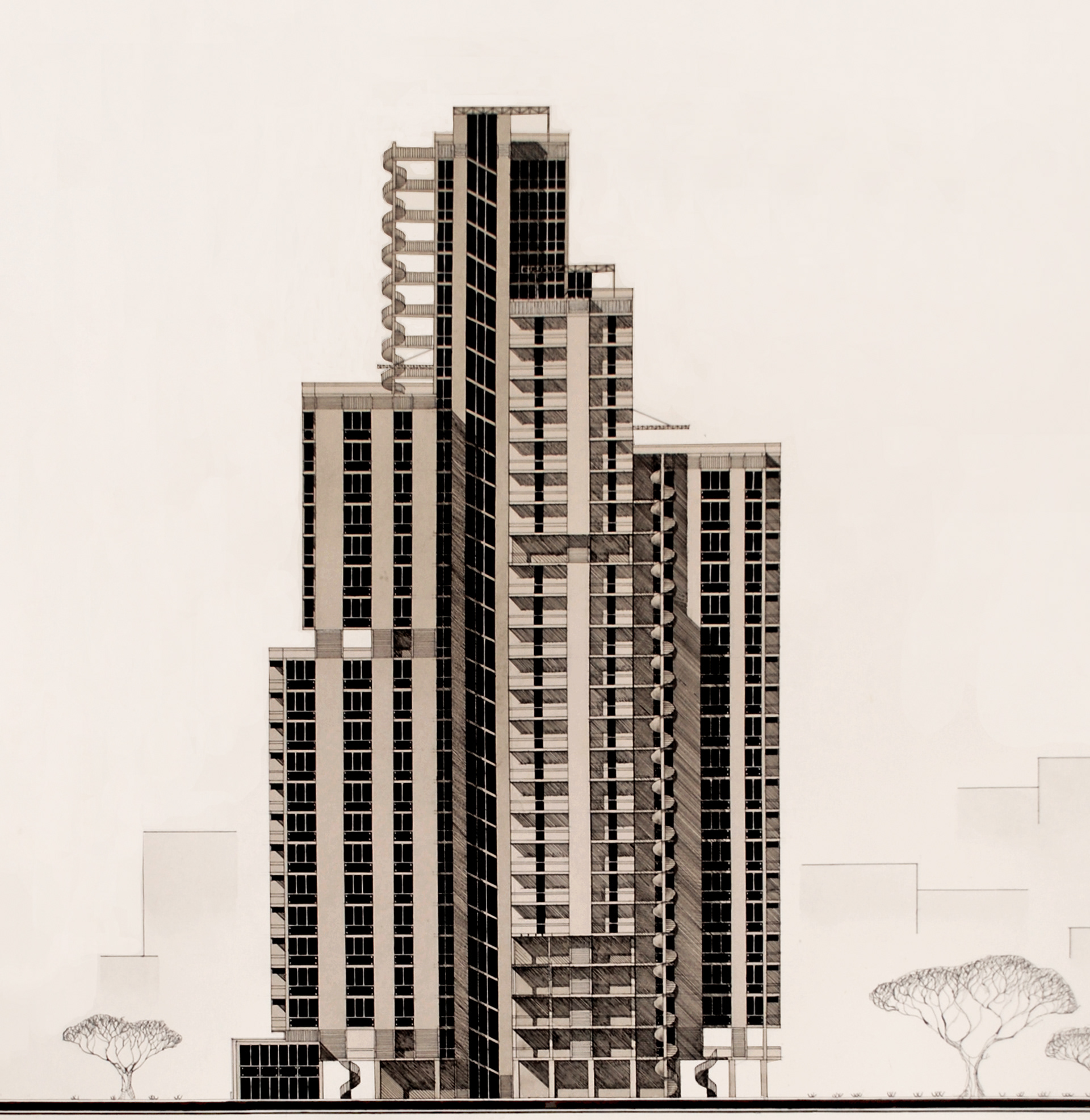

Elevation - East

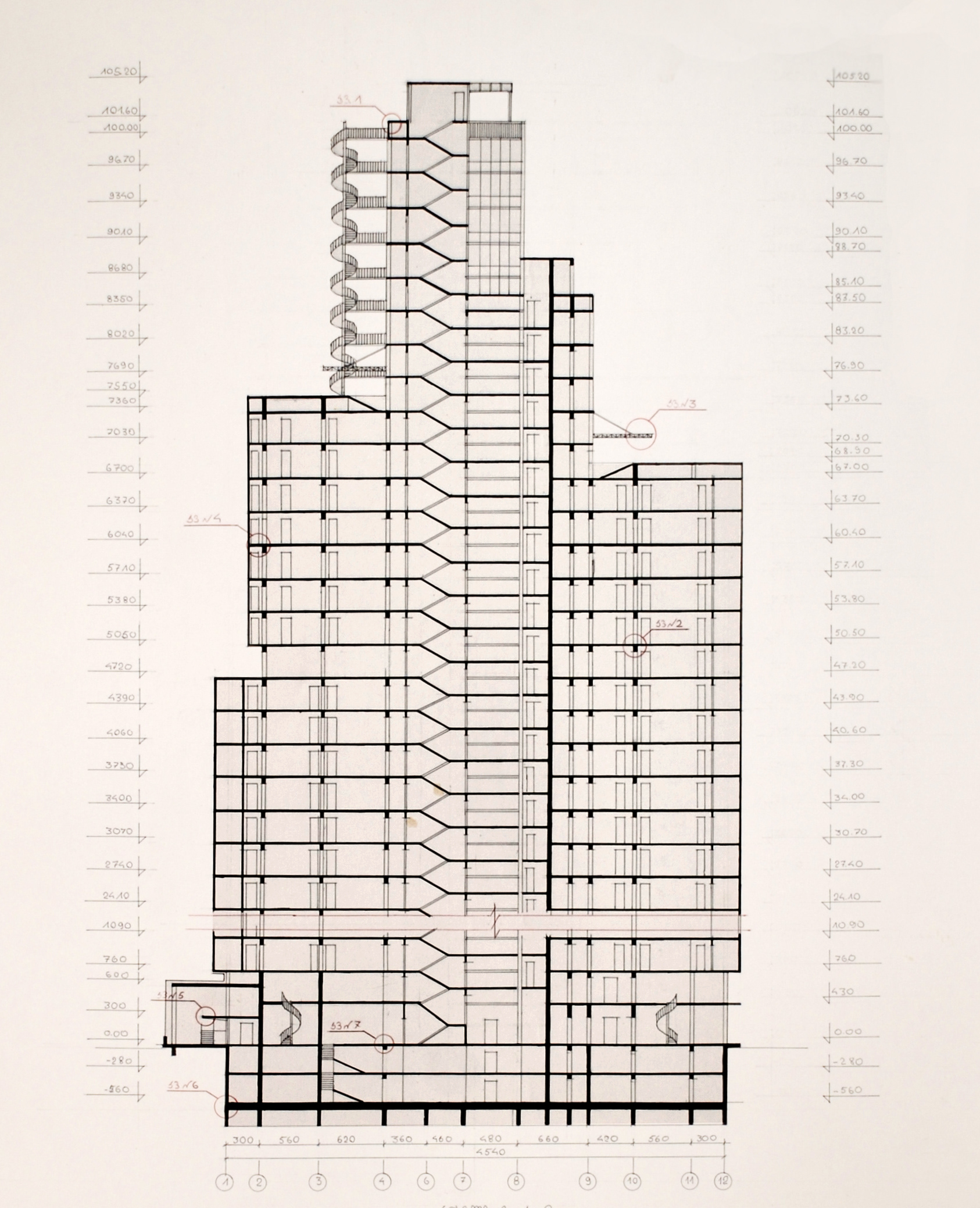

Section

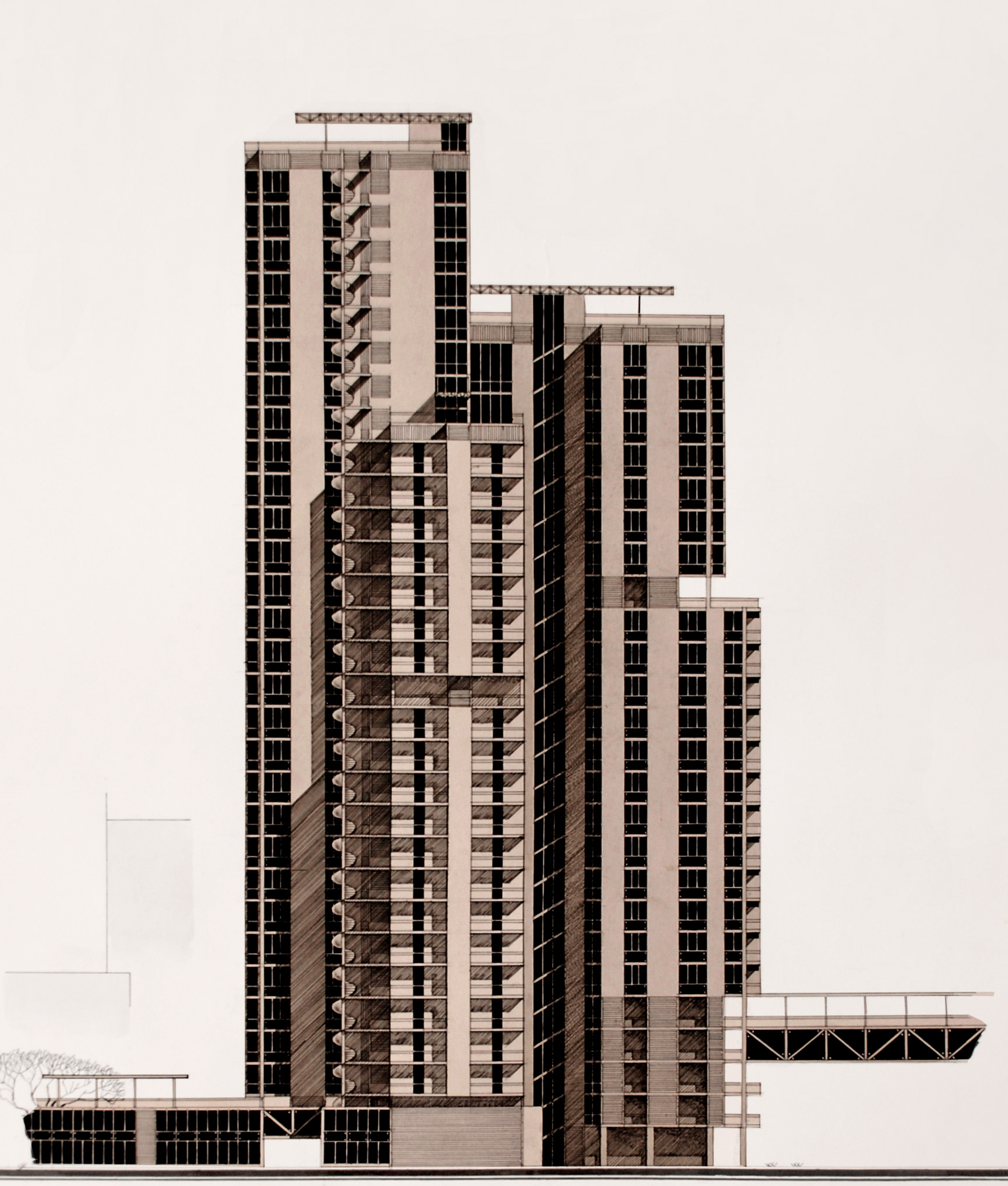

Elevation - West

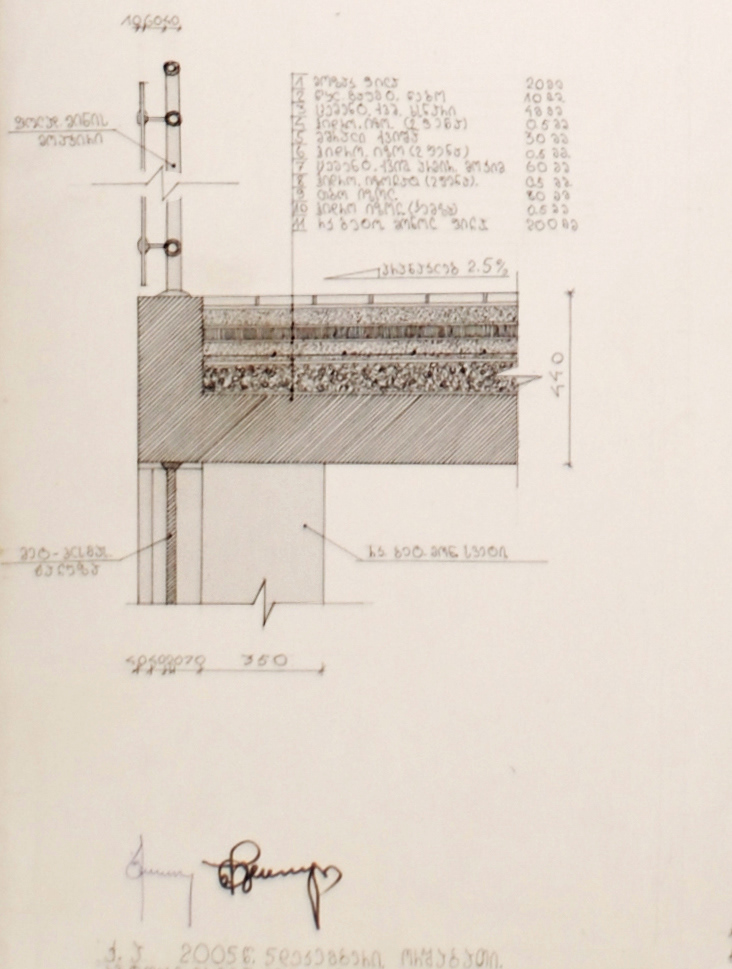

Detail 1

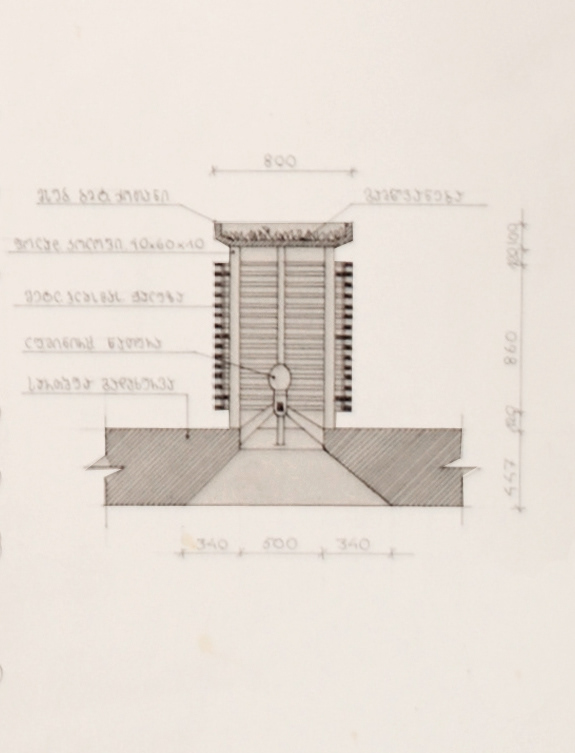

Detail 2

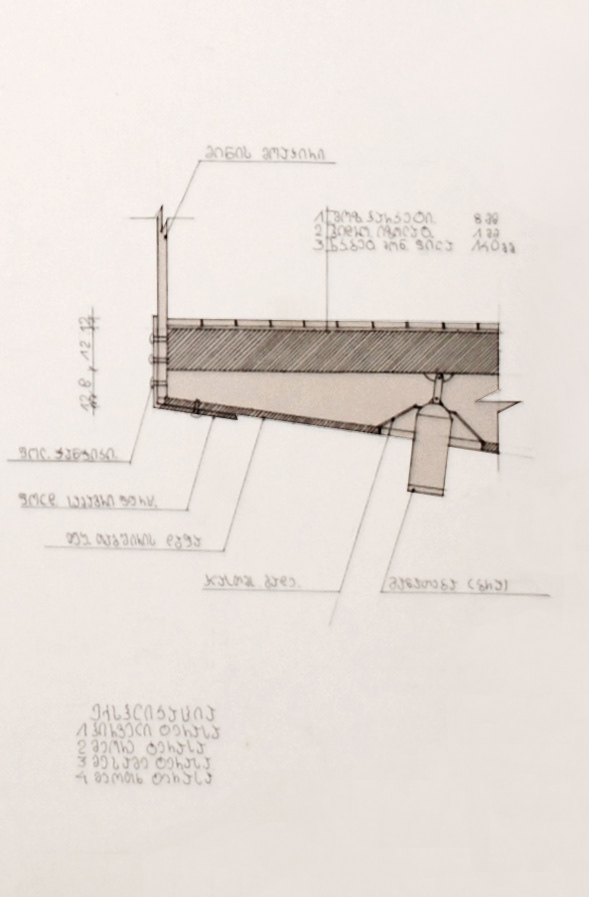

Detail 3
Detail 4
Detail 5
Detail 6
Axon - Site
