INTERPRETATION OF DRAWING
Fall 2015, Architectural Representation
Professors: David Askenazi
Professors: David Askenazi
Objectives
The challenge of the assignment was to create a morphological transformation process of a downscaled
model of a clamp through drawing. After mapping each layer of the scanned surface in the drawing, each different scale gave me room for interpreting the drawing into a positive mold, which eventually became an object on its own. Each scanned layer of the clamp corresponds to each layer of a different scale, from large to small. Stacking the layers to compose the object.

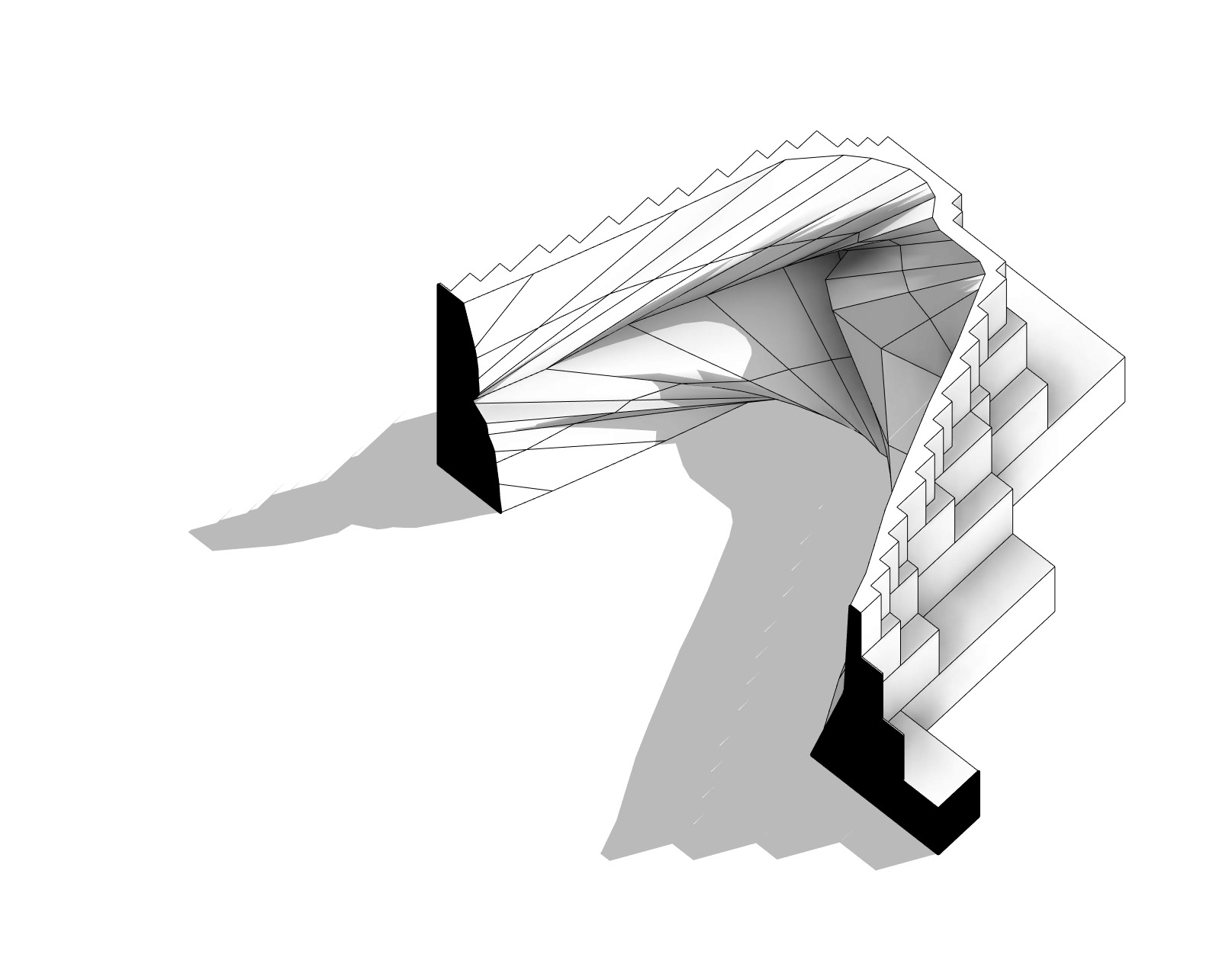

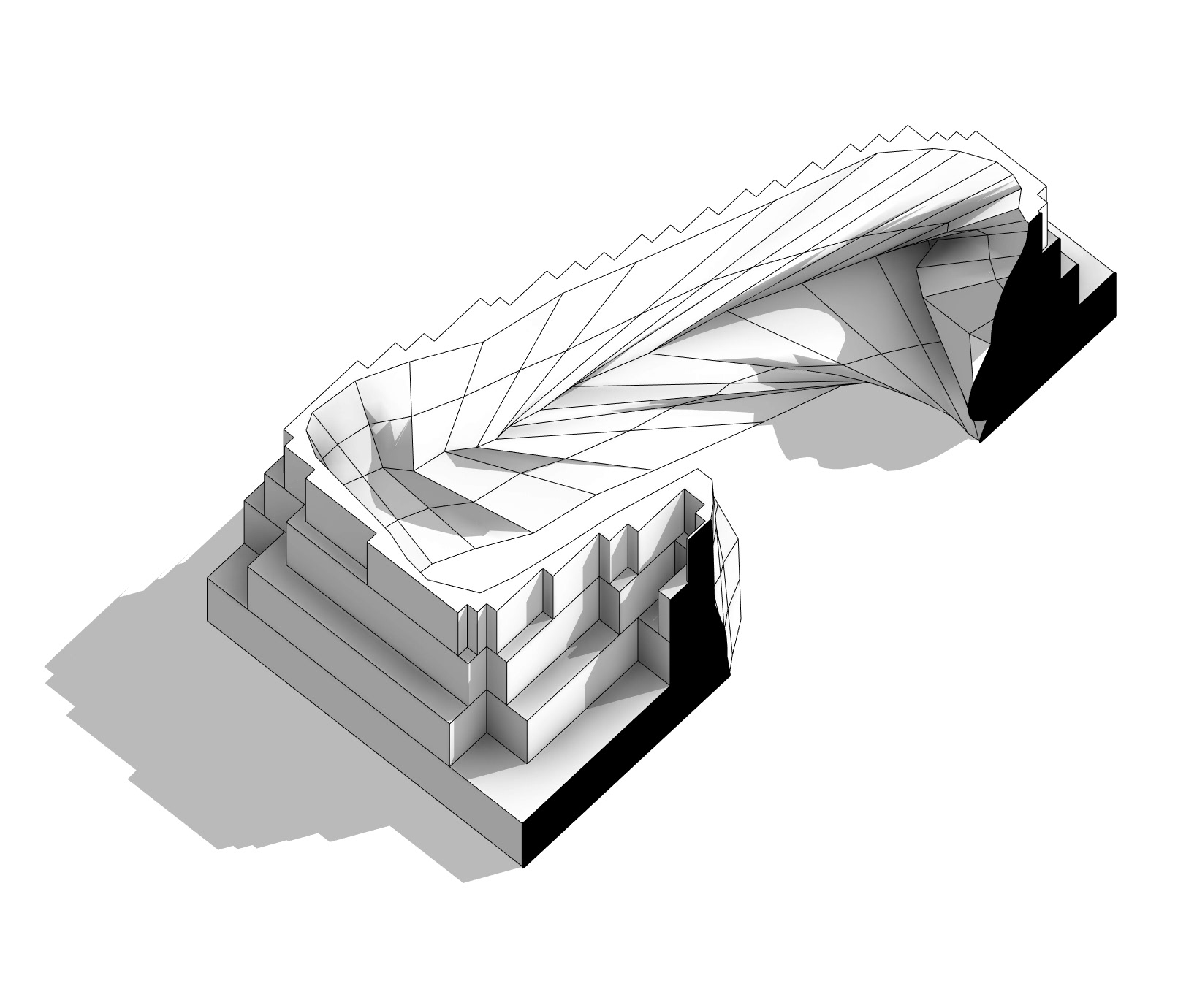

Axon
Axon - Longitudinal Section
Axon - Transverse Section

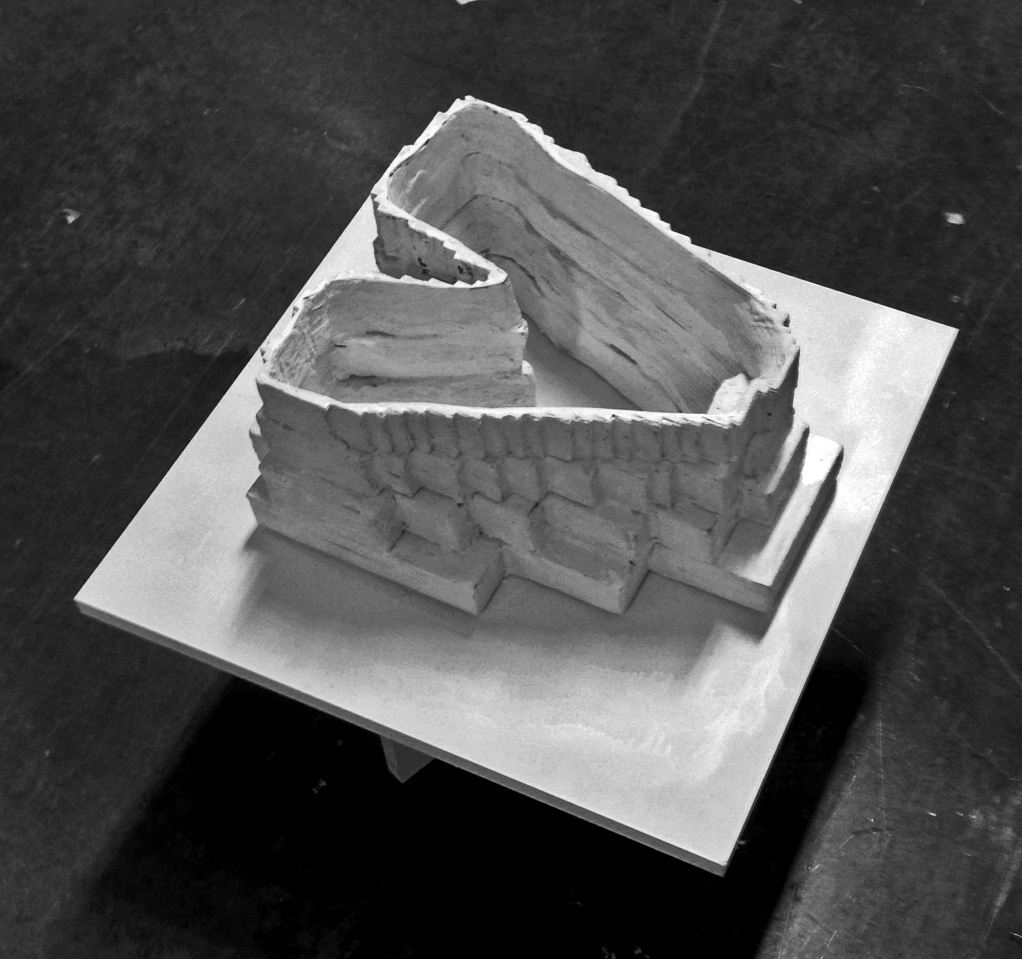

Assemblage
The Drawing - Mapping of the contours
